Inner External Spring Load (KSF,KSH,KS)

Specifications
Technical Data
Inquiry

■ Specifications

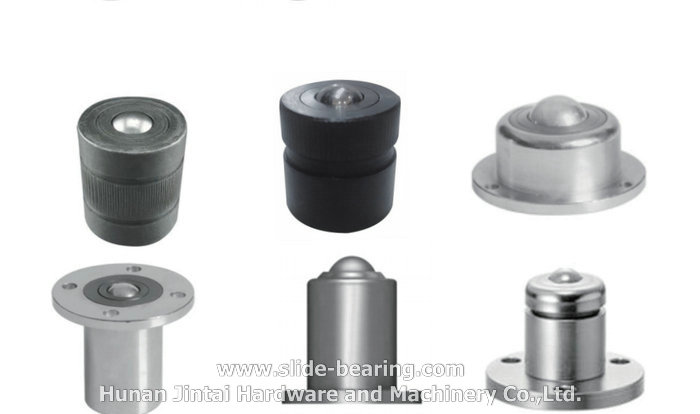

Inner External Spring Shock Load Series(KSF,KSH,KS) Ball Transfer Units,Inner Spring KS Series,Outer Spring Heavy Duty KS Series,Inner Spring Heavy Duty KSH Series ,Outer Spring Ball Downwards KS Series,Inner Spring Heavy Duty KSF-B Series,Inner Spring Heavy Duty KSF Series.

More detail：Inner External Spring Shock Load Series(KSF,KSH,KS) Ball Transfer Units.PDF

■ Technical Data

Inner External Spring Shock Load Series(KSF,KSH,KS) Ball Transfer Units

Model No.
KS-01	KSH-10
KS-02	KSH-15
KS-03	KSH-20
KS-04	KSH-25
KS-05	KST-12
KSF-19B	KSE-12
KSF-25B	KS-15
KSF-30B	KSFN-19
KSF-15	KSFT-19
KSF-22	KSFH-19
KSF-30	KS-19
KSF-45	KS-19H
	KS-20
	KS-30

How to choose a ball transfer unit?

Maximum Loading Capacity = (weight of article)/3 or 9

Maximum Spacing = (article width)/3.5; (article length)/3.5

How to arranging and installing ball transfer units?

There are different arranging ways to fit for different moving requirements:

There are different models of BTU fo choosing:

Applications

Typical application in production lines:

Typical application in goods handling:

Ball transfer units table in Dubai International Airport

How to delivery?

Gross weight lower than 50kgs, we suggest delivery by courier like DHL, TNT or others
Gross weight between 50kgs and 120kgs, we suggest delivery by aircargo
Gross weight over 120kgs, it can be delivered by sea shipping
