■ Specifications
| Name | Model | Spec.(mm) | ||||
| D | d | d1 | W | W1 | ||

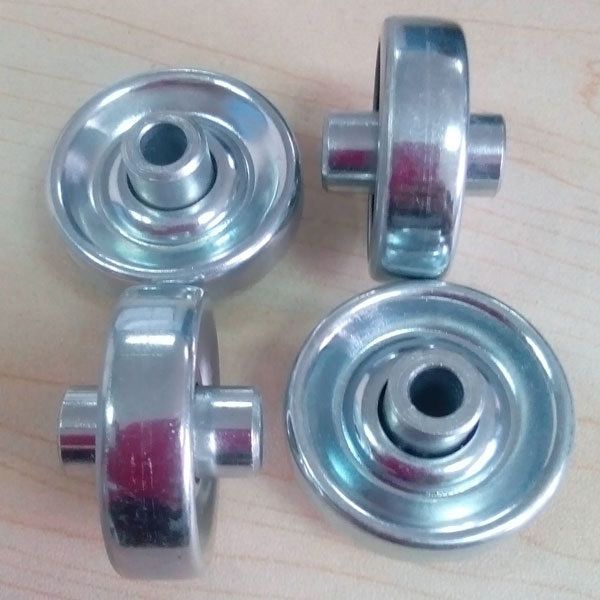

| Pressed conveyor skate wheel | HJ-01 | 38 | 6 | 12 | 11.5 | 25 |
| HJ-02 | 48 | 6.5 | 12 | 15 | 24 | |
| HJ-03 | 50 | 8 | 12 | 15 | 24 | |
■ Technical Data
| Name | Accessory | Material | Surface | Apply | Feature |
| conveyor skate wheel | Shell | Cold-rolled plate | Galvanization (zin-plating) | Mechanical conveyorsystem Warehousing logistics equipment |
Reasonablestructure Flexible rotation |
| Inner ring | carbon steel | ||||
| Ball | carbon steel |
