  • WB802 Harden Bronze Bushing

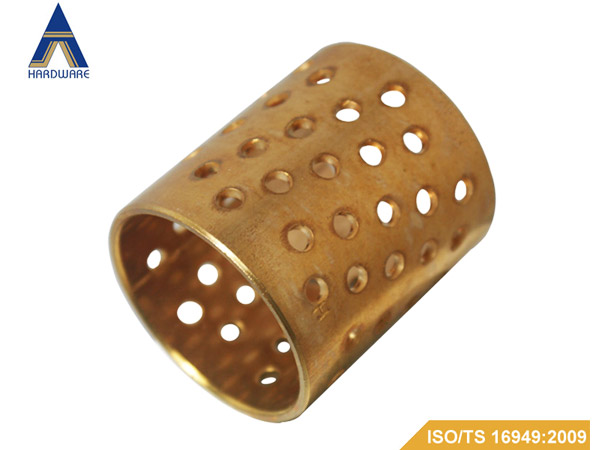

WB802 Harden Bronze Bushing

  • Hardness: 125-150 HB
  • Yield point: 300 N/mm2
  • Tensile strenght: 450 N/mm2
  • Maximum Dynamic Load: 40 N/mm2
  • Maximum Sliding Speed: 2.5 m/s
■ Specifications
 ►Advantages of WB802 Harden Bronze Bushing:
1. Lead-free and fully recyclable. Less expensive than machined bushing.
2. Minimal space required.
3. Lighter in weight than machined bushing or roller bearing.
4. High stability under load, therefore particularly suitable for oscillating bearing.
5. Lubrication grooves are coined into the metal, and any shape desired is possible.
6. Grease depots for long-term lubrication.

►Flanged bushing offer the following additional advantages:
1. A single bushing and take both radial and axial forces.
2. A single bearing element is needed to replace both thrust washer and cylindrical bushing.
3. High stability.
4. No fixing of thrust washers.
■ Technical Data
Descriptions
1. Material Chemical Composition (%) Type
CuSn8P Cu = 91.3% Sn = 8.5% P =0.2% Lead Free
CuPb10Sn10 Cu = Balance. Sn = 9~11%, Pb=9~11% With Lead
2. With round oil holes
3. Lead-free & Low-maintenance
Features
1. WB802 is based on high density bronze alloy, and rolled with diamond pocket or round pocket as it's inner surface.
2. It has high capacity, high temperature, anti-corrosion and good wear.
3. Hardness HD125-HB150
Possible Applications
Industrial: Widely used in construction machinery, agricultural machinery and so on.

Physical and Mechanical Properties
Maximum Operating Temperature Tmax 200 °C
Minimum Operating Temperature Tmin -100 °C
Maximum Static Load Psta,max 280 N/mm2
Maximum Dynamic Load Pdyn,max 40 N/mm2
Maximum Sliding Speed V 2.5 m/s
