■ Specifications

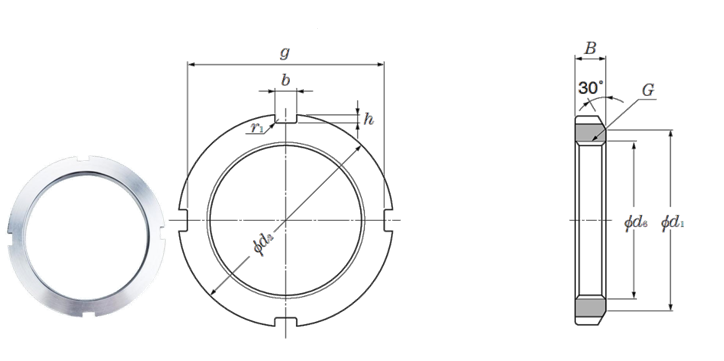

fom%7Bx%5Ba62tfho5.png)
■ Technical Data
| Lock nut | Dimensions(mm) | Weight (kg) | |||||||||
| G(1) | d2 | d1 | g | b | h | d6 | B | r1 | |||
| HNL41 | Tr205×4 | 250 | 232 | 232 | 18 | 8 | 207 | 30 | 0.8 | 3.43 | - |
| HNL43 | Tr215×4 | 260 | 242 | 242 | 20 | 9 | 217 | 30 | 0.8 | 3.72 | - |
| HNL47 | Tr235×4 | 280 | 262 | 262 | 20 | 9 | 237 | 34 | 0.8 | 4.6 | - |
| HNL52 | Tr260×4 | 310 | 290 | 290 | 20 | 10 | 262 | 34 | 0.8 | 5.8 | - |
| HNL56 | Tr280×4 | 330 | 310 | 310 | 24 | 10 | 282 | 38 | 0.8 | 6.72 | - |
| HNL60 | Tr300×4 | 360 | 336 | 336 | 24 | 12 | 302 | 42 | 0.8 | 9.6 | - |
| HNL64 | Tr320×5 | 380 | 356 | 356 | 24 | 12 | 322.5 | 42 | 1 | 10.3 | - |
| HNL69 | Tr345×5 | 410 | 384 | 384 | 28 | 13 | 347.5 | 45 | 1 | 11.5 | - |
| HNL72 | Tr360×5 | 420 | 394 | 394 | 28 | 13 | 362.5 | 45 | 1 | 12.1 | - |
| HNL73 | Tr365×5 | 430 | 404 | 404 | 28 | 13 | 367.5 | 48 | 1 | 14.2 | - |
| HNL76 | Tr380×5 | 450 | 422 | 422 | 28 | 14 | 382.5 | 48 | 1 | 15 | - |
| HNL77 | Tr385×5 | 450 | 422 | 422 | 28 | 14 | 387.5 | 48 | 1 | 16 | - |
| HNL80 | Tr400×5 | 470 | 442 | 442 | 28 | 14 | 402.5 | 52 | 1 | 18.5 | - |
| HNL82 | Tr410×5 | 480 | 452 | 452 | 32 | 14 | 412.5 | 52 | 1 | 19 | - |
| HNL84 | Tr420×5 | 490 | 462 | 462 | 32 | 14 | 422.5 | 52 | 1 | 19.4 | - |
| HNL86 | Tr430×5 | 500 | 472 | 472 | 32 | 14 | 432.5 | 52 | 1 | 19.8 | - |
| HNL88 | Tr440×5 | 520 | 490 | 490 | 32 | 15 | 442.5 | 60 | 1 | 27 | - |
| HNL90 | Tr450×5 | 520 | 490 | 490 | 32 | 15 | 452.5 | 60 | 1 | 23.8 | - |
| HNL92 | Tr460×5 | 540 | 510 | 510 | 32 | 15 | 462.5 | 60 | 1 | 25 | - |
| HNL94 | Tr470×5 | 540 | 510 | 510 | 32 | 15 | 472.5 | 60 | 1 | 28 | - |
| HNL96 | Tr480×5 | 560 | 530 | 530 | 36 | 15 | 482.5 | 60 | 1 | 29.5 | - |
| HNL98 | Tr490×5 | 580 | 550 | 550 | 36 | 15 | 492.5 | 60 | 1 | 34 | - |
| HNL100 | Tr500×5 | 580 | 550 | 550 | 36 | 15 | 502.5 | 68 | 1 | 35 | - |
| HNL104 | Tr520×6 | 600 | 570 | 570 | 36 | 15 | 523 | 68 | 1 | 37 | - |
| HNL106 | Tr530×6 | 630 | 590 | 590 | 40 | 20 | 533 | 68 | 1 | 43.5 | - |
| HNL108 | Tr540×6 | 630 | 590 | 590 | 40 | 20 | 543 | 68 | 1 | 47 | - |
