■ Specifications

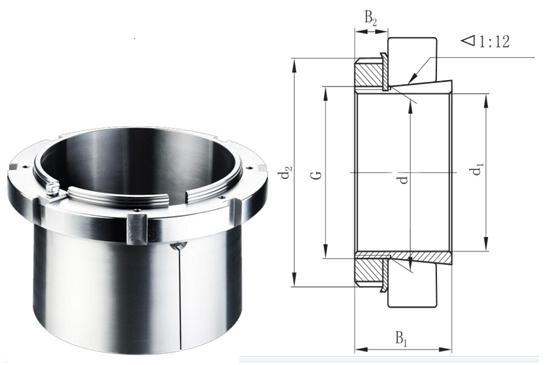

■ Technical Data
| Adapter Sleeve | Shaft d1 | Dimensions(mm) | Weight (kg) | Composition | ||||||||||
| HS in | HA in | HE in | H mm | d | d2 | B1 | B2 | G | Sleeve | Lock nut | Lock washer | Lock card | ||
| H304 | 5/8 | - | - | 17 | 20 | 32 | 28 | 7 | M20X1 | 0.04 | A304 | KM4 | MB04 | - |
| H305 | - | 11/16 | 3/4 | 20 | 25 | 38 | 29 | 8 | M25X 1.5 | 0.07 | A305 | KM5 | MB05 | - |
| H306 | 7/8 | 15/16 | 1 | 25 | 30 | 45 | 31 | 8 | M30X1.5 | 0.11 | A306 | KM6 | MB06 | - |
| H307 | 1-1/8 | 1-3/16 | - | 30 | 35 | 52 | 35 | 9 | M35X 1.5 | 0.14 | A307 | KM7 | MB07 | - |
| H308 | 1-3/8 | 1-5/16 | 1-1/4 | 35 | 40 | 58 | 36 | 10 | M40 X1 .5 | 0.19 | A308 | KM8 | MB08 | - |
| H309 | - | 1-7/16 | 1-1/2 | 40 | 45 | 65 | 39 | 11 | M45X 1.5 | 0.25 | A309 | KM9 | MB09 | - |
| H310 | 1-5/8 | 1-11/16 | 1-3/4 | 45 | 50 | 70 | 42 | 12 | M50X1.5 | 0.3 | A310 | KM10 | MB10 | - |
| H311 | 1-7/8 | 1-15/16 | 2 | 50 | 55 | 75 | 45 | 12 | M55X2 | 0.35 | A311 | KM11 | MB11 | - |
| H312 | 2-1/8 | 2-1/16 | - | 55 | 60 | 80 | 47 | 13 | M60X2 | 0.39 | A312 | KM12 | MB12 | - |
| H313 | 2-3/8 | 2-3/16 | 2-1/4 | 60 | 65 | 85 | 50 | 14 | M65X2 | 0.46 | A313 | KM13 | MB13 | - |
| H314 | - | - | - | 60 | 70 | 92 | 52 | 14 | M70X2 | 0.72 | A314 | KM14 | MB14 | - |
| H315 | 2-5/8 | 2-7/16 | 2-1/2 | 65 | 75 | 98 | 55 | 15 | M75X2 | 0.83 | A315 | KM15 | MB15 | - |
| H316 | 2-7/8 | 2-11/16 | 2-3/4 | 70 | 80 | 105 | 59 | 17 | M80X2 | 1 | A316 | KM16 | MB16 | - |
| H317 | - | 2-15/16 | 3 | 75 | 85 | 110 | 63 | 18 | M85X2 | 1.2 | A317 | KM17 | MB17 | - |
| H318 | 3-1/8 | 3-3/16 | 3-1/4 | 80 | 90 | 120 | 65 | 18 | M90X2 | 1.35 | A318 | KM18 | MB18 | - |
| H319 | - | 3-5/16 | 3-1/4 | 85 | 95 | 125 | 68 | 19 | M95X2 | 1.55 | A319 | KM19 | MB19 | - |
| H320 | - | 3-7/16 | 3-1/2 | 90 | 100 | 130 | 71 | 20 | M100X2 | 1.7 | A320 | KM 20 | MB20 | - |
| H321 | - | - | - | 95 | 105 | 140 | 74 | 20 | M105X2 | 1.95 | A321 | KM21 | MB21 | - |
| H322 | - | 3-15/16 | 4 | 100 | 110 | 145 | 77 | 21 | M110X2 | 2.2 | A322 | - | - | - |
