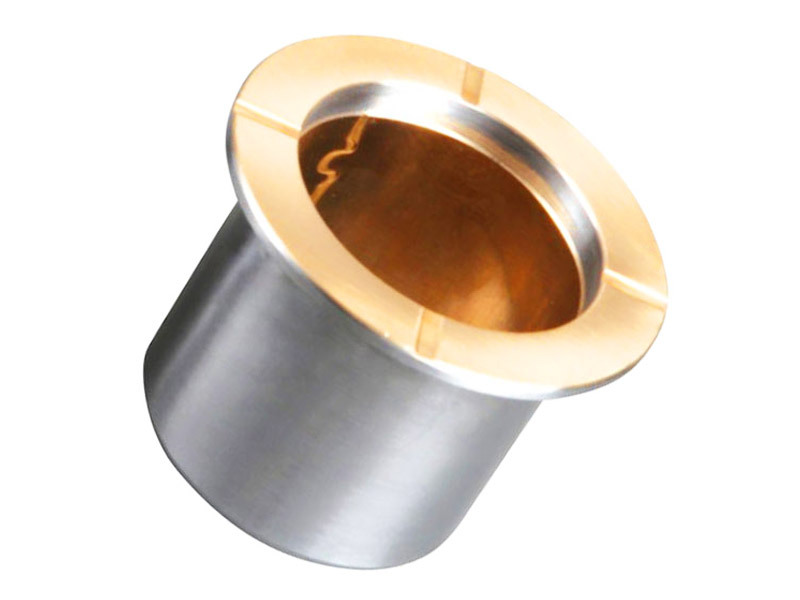

Flanged Bimetal Bushing

Maximum Operating Temperature Tmax-greased: 150 °C
Maximum Operating Temperature Tmax-oil lubricated: 250 °C
Minimum Operating Temperature Tmin: -40 °C
Maximum Static Load Psta,max: 300 N/mm2
Maximum Dynamic Load Pdyn,max: 140 N/mm2
Maximum Sliding Speed V-greased: 2.5 N/mm2 * m/s

Specifications
Technical Data
Inquiry

■ Specifications

►SWPB Alloy Code & Corresponding International Code：

Product Code	Alloy Code	Alloy Hardness	Corresponding International Code
SWPB800	CuPb10Sn10	69-90 HB	DIN-CuPb10Sn, SAE-797, JIS-LBC3, GGB-SY, GLYCO-66, FEDERAL MOGUL-HF2, DAIDO-L10, ACL-F100

►JF800 Alloy CuPb10Sn10 Chemical Composition ( % )：

Cu	Pb	Sn	Zn	P	Fe	Ni	Sb	other
rest	9-11	9-11	≤ 0.5	≤ 0.1	≤ 0.7	≤ 0.5	≤ 0.2	≤ 0.5

►Physical & Mechanical Properties：

Items	Value	Unit
Maximum Operating Temperature Tmax-greased	150	°C
Maximum Operating Temperature Tmax-oil lubricated	250	°C
Minimum Operating Temperature Tmin	-40	°C
Maximum Static Load Psta,max	300	N/mm2
Maximum Dynamic Load Pdyn,max	140	N/mm2
Maximum Sliding Speed V-greased	2.5	N/mm2 * m/s
Maximum PV Factor-greased	2.8	N/mm2 * m/s
Coefficient of friction f-greased	0.05-0.12
Coefficient of friction f-oil lubricated	0.04-0.12

►Usage Range：

dry	poor
oil lubricated	good
grease lubricated	very good
water lubricated	poor
process fluid lubricated	poor

►Possible Application Industrial:
Construction machines,chassis,apron wheels

■ Technical Data

Bimetal-bearing is a bimetal bearing, wrapped of steel sheets with a layer of lead bronze.

· Bronze layer: CuPb10Sn10
· Load Capacity: 150N/mm2
· Max. Speed: 5m/s
· Hardness: HB 60~90
· Product description: WF-BM Flange Bimetal Bearing Bushing,flange bimetal bearing,bimetal bushing,bimetal bush

The standard sizes are fitted with lubrication indents on the running surface. For standard bearings is normally the steel backing copper plated to improve the corrosion resistance. The layer of lead bronze makes it possible to use these bearings with relative long lubrication intervals.
Bimetal-bearings can be manufactured with a thicker lead bronze layer for applications where the bearing has to be machined after mounting. The material of the layer can be fitted to the special needs for the application in question.

Technical data

Material:	Copper plated steel backing, lead bronze layer (CuPb10Sn10)
Yield point:	(Rp0,2) ca 240 N/mm2
Tensile strenght:	(Rm) ca 350 N/mm2
Hardness:	ca 90 – 110 HB
Friction:	Depends from the material and the performance of the layer.
Max speed:	3,0 m/s
Temperature range:	-100 / +260 °C
Load	Speed
Ca: 240 N/mm2	0 m/s
120 N/mm2	0,01 m/s
40 N/mm2	2,0 m/s

Tolerances:
Housing H7, recommended tolerance for the shaft, h8.

Special:
· In- or outside lubrication grooves.
· Several alternative layer materials.
· Without lubrication indents.
· Other positions of tolerance.
· Flat or spherical thrust washers.
· Drawing details.

Typical applications:
· Hoisting applications.
· Hydraulic cylinders.
· Hydraulic motors.
· Pneumatic.
· Textile machines.

Benefits:
· Rather high load capacity.
· Possibility to machine the inside diameter after mounting.
· High level thermal conductivity.
· Good chemical resistance.
· Wide range of temperature.
