GE Radial Spherical Plain Bearings

Specifications
Technical Data
Inquiry

■ Specifications

Operating conditions:	Maintenance-free
Sliding contact surfaces:	Steel/PTFE composite material
Shaft fits tolerance:	h6 (harden shaft) or m6
Housing fits tolerance:	H7 (Small load) or M7 (heavy load)
Working Temperature:	-30℃ ~+130℃
GE..ETL, GE..XTL:	Self-lubricating

Description:

          Radial spherical plain bearings are available with different sliding contact surface combinations, i.e. the sliding surfaces of inner and outer rings are made from different materials. There are two main groups： spherical plain bearings requiring maintenance(steel-on-steel) and maintenance-free spherical plain bearings.
           Maintenance-free spherical plain bearing sliding contact surfaces have four groups: steel-on-PTFE composite material, teel-on-PTFE fabric, steel-on-copper alloy and steel-on- PTFE plastic. Dynamic load support capability of steel-on-PTFE fabric spherical plain bearings is higher than that of steel-on-PTFE composite material. They have very low friction and can be operated without maintenance. They are used for applications where long bearing lives are required without maintenance, or where operating conditions, such as inadequate lubrication or the absence of lubrication make the use of steel-on-steel bearing inadvisable.

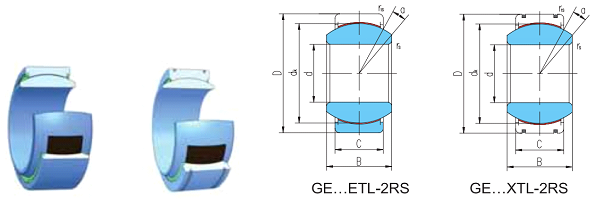

          Outer ring in carbon chrome steel with harden and phosphated treatment.Inner ring in carbon chrome steel with hard chrome plated. Sliding surface with PTFE fabric composite. 2RS means two seals at both ends, XTL means split outer ring held by retaining ring.

■ Technical Data

Sliding contact surfaces： Steel / PTFE fabric

Bearing Models		Dimensions (mm)								Load Ratings (KN)		Weight (≈kg )
Bearing Models		d	D	B	C	dk	rs min	ns min	a° ≈	Dynamic	Static
GE15ETL-2RS	15		26	12	9	22	0.3	0.3	8	47	79	0.026
GE17ETL-2RS	17		30	14	10	25	0.3	0.3	10	60	100	0.040
GE20ETL-2RS	20		35	16	12	29	0.3	0.3	9	83	139	0.064
GE25ETL-2RS	25		42	20	16	35.5	0.6	0.6	7	135	225	0.115
GE30ETL-2RS	30		47	22	18	40.7	0.6	0.6	6	175	290	0.149
GE35ETL-2RS	35		55	25	20	47	0.6	1	6	225	375	0.228
GE40ETL-2RS	40		62	28	22	53	0.6	1	7	275	465	0.318
GE45ETL-2RS	45		68	32	25	60	0.6	1	7	360	600	0.421
GE50ETL-2RS	50		75	35	28	66	0.6	1	6	440	735	0.562
GE55ETL-2RS	55		85	40	32	74	0.6	1	7	560	940	0.864
GE60ETL-2RS	60		90	44	36	80	1	1	6	690	1150	1.03
GE70ETL-2RS	70		105	49	40	92	1	1	6	880	1470	1.57
GE80ETL-2RS	80		120	55	45	105	1	1	6	1130	1890	2.32
GE90ETL-2RS	90		130	60	50	115	1	1	5	1380	2300	2.79
GE100ETL-2RS	100		150	70	55	130	1	1	7	1710	2860	4.44
GE110ETL-2RS	110		160	70	55	140	1	1	6	1840	3080	4.83
GE120ETL-2RS	120		180	85	70	160	1	1	6	2680	4480	8.11
GE140ETL-2RS	140		210	90	70	180	1	1	7	3020	5040	11.2
GE160ETL-2RS	160		230	105	80	200	1	1	8	3840	6400	14.1
GE180ETL-2RS	180		260	105	80	225	1.1	1.1	6	4320	7200	18.5
GE200ETL-2RS	200		290	130	100	250	1.1	1.1	7	6000	10000	28.4
GE220ETL-2RS	220		320	135	100	275	1.1	1.1	8	6600	11000	35.7
GE240ETL-2RS	240		340	140	100	300	1.1	1.1	8	7200	12000	39.7
GE260ETL-2RS	260		370	150	110	325	1.1	1.1	7	8580	14300	51.5
GE280ETL-2RS	280		400	155	120	350	1.1	1.1	6	10000	16800	64.9
GE300ETL-2RS	300		430	165	120	375	1.1	1.1	7	10800	18000	77.6
