  • Oil Sintered Iron Bushing

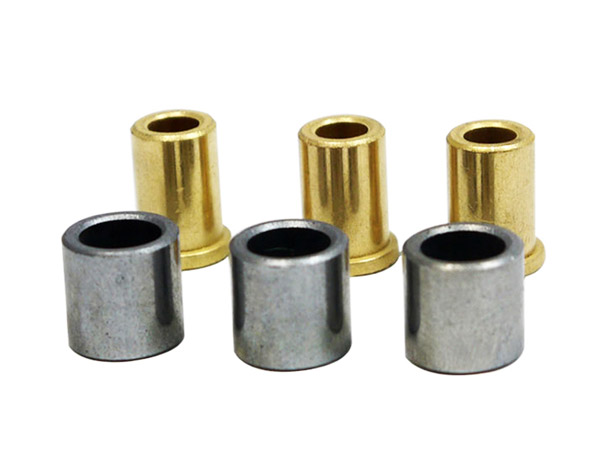

Oil Sintered Iron Bushing

  • Basic Materials: Iron,SAE863,ASTM B439-70
  • Other Materials: SINT - B00,SINT - B11
  • Oil rate: ≥18%
  • Hardness: 40HB~70HB
■ Specifications
Powder metallurgy (PM) is a forming and fabrication technique consisting of three major processing stages.
First, the primary material is physically powdered, divided into many small individual particles.
Next, the powder is injected into a mold or passed through a die to produce a weakly cohesive structure (via cold welding) very near the dimensions of the object ultimately to be manufactured. Pressures of 10-50 tons per square inch are commonly used.
Also,to attain the same compression ratio across more complex pieces, it is often necessary to use lower punches as well as an upper punch.
Finally, the end part is formed by applying pressure,high temperature,long setting times (during which self-welding occurs), or any combination thereof.
■ Technical Data
►Iron Material
Basic Materials Chemical Composition (%) Other Materials

SAE863 Type3

ASTM B439-70 GR4

Mil-B-5687C Type…CompB




Cu: 18.0~22.0,
Fe: Rest
Particles: 2.0

MPIF: F - 0000 - K23 / ASTM: B 439 - 83 / DIN: SINT - B00
MPIF: F - 0008 - K32 / ASTM: B 439 - 83 / DIN: SINT - B11
MPIF: FG - 0303 - K16
MPIF: F - 0000 - K15 / K23
MPIF: F - 0005-K20 / F - 0005-K28
MPIF: F - 0008 - K20 /F - 0008 - K32
