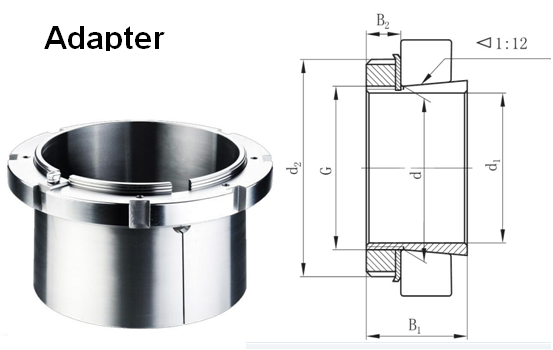

■ Specifications
.png)
■ Technical Data
| Adapter Sleeve | Shaft d1 | Dimensions (mm) | Weight (kg) | Composition | ||||||||||
| HS in | HA in | HE in | H mm | d | d2 | B1 | B2 | G | Sleeve | Lock nut | Lockw asher | Lock Card | ||
| H204 | 5/8 | - | - | 17 | 20 | 32 | 24 | 7 | M20 X 1 | 0.04 | A204 | KM4 | MB04 | - |
| H205 | - | 11/16 | 3/4 | 20 | 25 | 38 | 26 | 8 | M25X 1.5 | 0.07 | A205 | KM5 | MB05 | - |
| H206 | 7/8 | 15/16 | 1 | 25 | 30 | 45 | 27 | 8 | M30X 1.5 | 0.1 | A206 | KM6 | MB06 | - |
| H207 | 1-1/8 | 1-3/16 | - | 30 | 35 | 52 | 29 | 9 | M35X 1.5 | 0.13 | A207 | KM7 | MB07 | - |
| H208 | 1-3/8 | 1-5/16 | 1-1/4 | 35 | 40 | 58 | 31 | 10 | M40X 1.5 | 0.17 | A208 | KM8 | MB08 | - |
| H209 | - | 1-7/16 | 1-1/2 | 40 | 45 | 65 | 33 | 11 | M45X1.5 | 0.23 | A209 | KM9 | MB09 | - |
| H210 | 1-5/8 | 1-11/16 | 1-3/4 | 45 | 50 | 70 | 35 | 12 | M50 X1.5 | 0.27 | A210 | KM10 | MB10 | - |
| H211 | 1-7/8 | 1-15/16 | 2 | 50 | 55 | 75 | 37 | 13 | M55X2 | 0.31 | A211 | KM11 | MB11 | - |
| H212 | 2-1/8 | 2-1/16 | - | 55 | 60 | 80 | 38 | 13 | M60X2 | 0.35 | A212 | KM12 | MB12 | - |
| H213 | 2-3/8 | 2-3/16 | 2-1/4 | 60 | 65 | 85 | 40 | 14 | M65X2 | 0.4 | A213 | KM13 | MB13 | - |
| H214 | - | - | - | 60 | 70 | 92 | 41 | 14 | M70X2 | 0.6 | A214 | KM14 | MB14 | - |
| H215 | 2-5/8 | 2-7/16 | 2-1/2 | 65 | 75 | 98 | 42 | 15 | M75X2 | 0.71 | A215 | KM15 | MB15 | - |
| H216 | 2-7/8 | 2-11/16 | 2-3/4 | 70 | 80 | 105 | 46 | 17 | M80X2 | 0.88 | A216 | KM16 | MB16 | - |
| H217 | - | 2-15/16 | 3 | 75 | 85 | 110 | 50 | 18 | M85X2 | 1.02 | A217 | KM17 | MB17 | - |
| H218 | 3-1/8 | 3-3/16 | 3-1/4 | 80 | 90 | 120 | 52 | 18 | M90X2 | 1.2 | A218 | KM18 | MB18 | - |
| H219 | - | 2-5/16 | 3-1/4 | 85 | 95 | 125 | 55 | 19 | M95X2 | 1.35 | A219 | KM19 | MB19 | - |
| H220 | - | 3-7/16 | 3-1/2 | 90 | 100 | 130 | 58 | 20 | M100X2 | 1.5 | A220 | KM20 | MB20 | - |
| H221 | - | - | - | 95 | 105 | 140 | 60 | 20 | M105X2 | 1.7 | A221 | KM21 | MB21 | - |
| H222 | - | 3-15/16 | 4 | 100 | 110 | 145 | 63 | 21 | M110X2 | 1.9 | A222 | KM22 | MB22 | - |
