■ Specifications
■ Technical Data

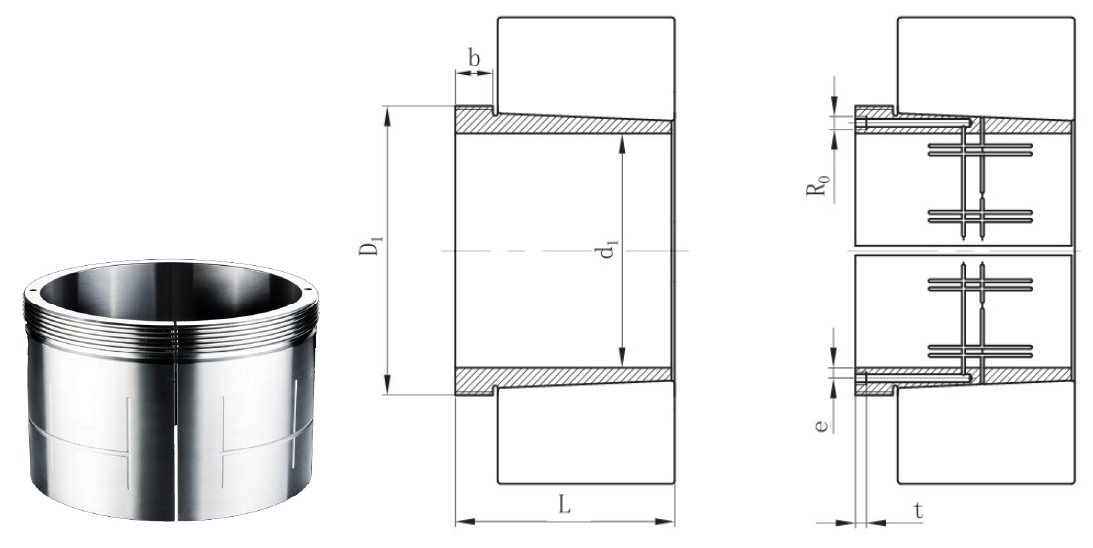

| Withdrawal Sleeve | Dimensions(mm) | Weight (kg) | Lock nut | ||||||
| d1 | L | b | Ro | e | t | D1 | |||
| AOH2332 | 150 | 140 | 24 | M6 | 4.5 | 7 | M180 X 3 | 4.72 | KM36 |
| AOH2334 | 160 | 146 | 24 | M6 | 4.5 | 7 | M190 X 3 | 5.25 | KM38 |
| AOH2336 | 170 | 154 | 26 | M6 | 4.5 | 7 | M200 X 3 | 5.83 | KM40 |
| AOH2338 | 180 | 160 | 26 | M6 | 4.5 | 7 | T210 X 4 | 6.63 | HM42 |
| AOH2340 | 190 | 170 | 30 | M6 | 4.5 | 7 | T220 X 4 | 7.54 | HM44 |
| AOH2344 | 200 | 181 | 30 | PT1/8 | 8 | 12 | T240 X 4 | 13.5 | HM48 |
| AOH2348 | 220 | 189 | 30 | PT1/8 | 8 | 12 | T260 X 4 | 15.5 | HM52 |
| AOH2352 | 240 | 205 | 30 | PT1/8 | 8 | 12 | T290 X 4 | 19.6 | HM58 |
| AOH2356 | 260 | 212 | 30 | PT1/8 | 8 | 12 | T310 X 5 | 21.6 | HM62 |
