Technical Report: Adapter Sleeves, Lock Nuts and Lock Washers
2025-11-26
1. Material Composition

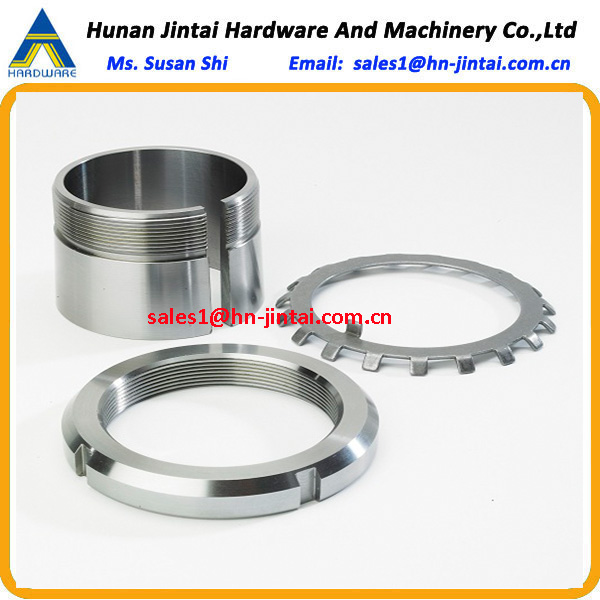

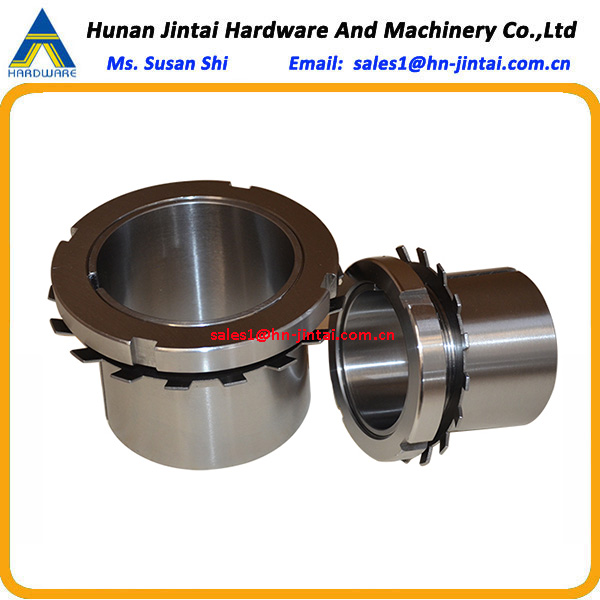

· Adapter Sleeves:
· Core Material: High-carbon bearing steel (e.g., GCr15) with surface hardness HRC 58–62 for wear resistance and fatigue strength
· Surface Treatment: Phosphating or black oxide coatings to reduce corrosion in industrial environments

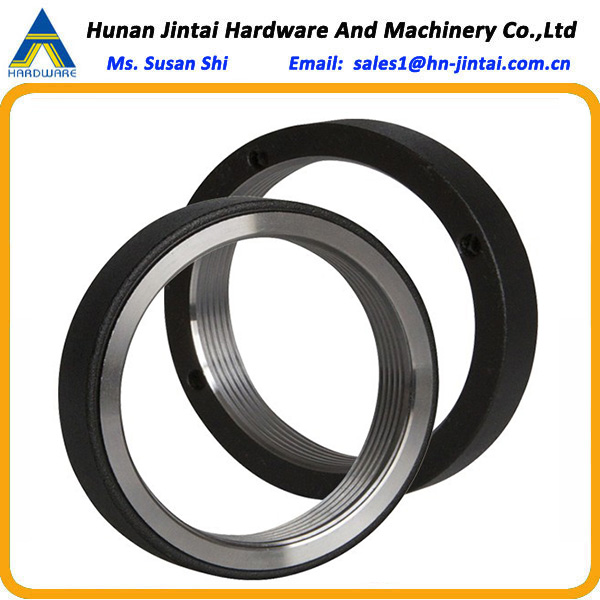

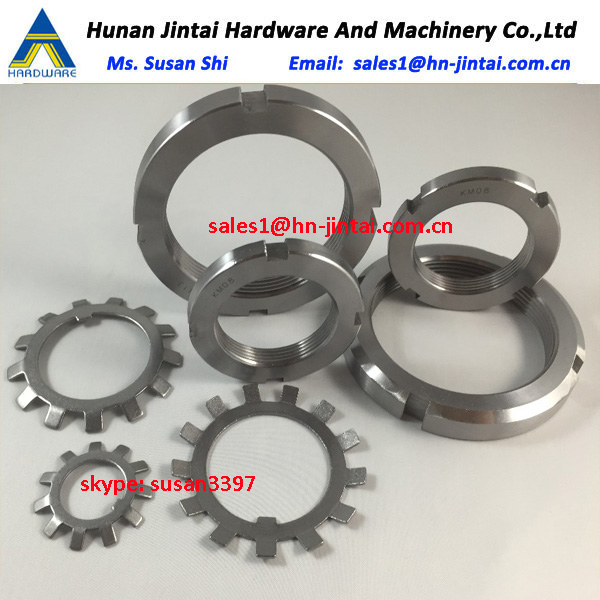

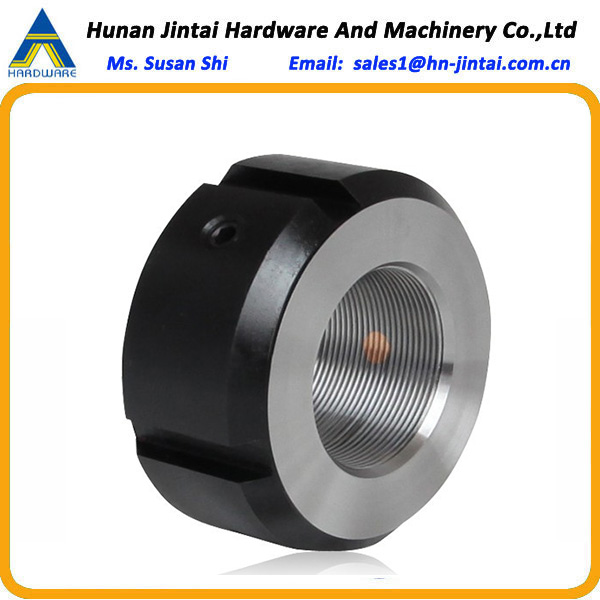

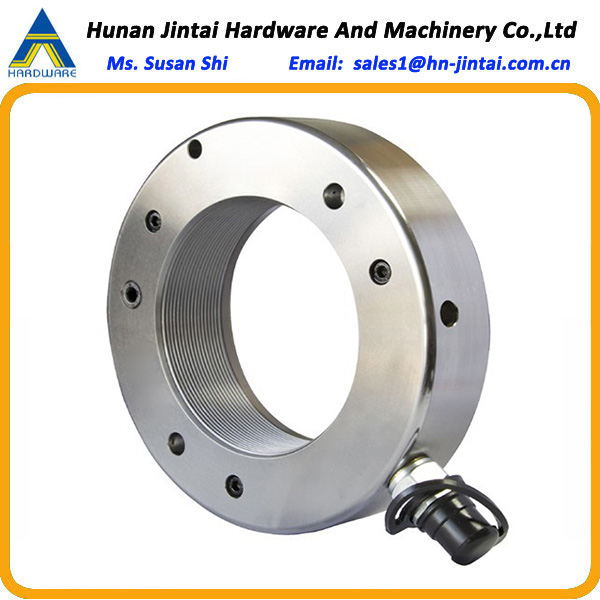

· Lock Nuts:
· Steel Variants: Carbon steel (AISI 1045) or stainless steel (AISI 304) for high torque resistance
· Thread Design: Metric fine threads (e.g., Tr1000×8) for precise axial adjustment in bearing assemblies
· Lock Washers:
· Stainless Steel: AISI 316 for chemical resistance in marine or food-grade applications
· Star Teeth Design: Precision-stamped edges for vibration resistance and torque retention (≤5% loss after 10⁴ cycles)
2. Structural Design
|
Component
|
Key Features
|
|
Adapter Sleeves
|
Tapered inner bore (1:12 ratio) and threaded ends for radial fixation of bearings
|
|
Lock Nuts
|
Hexagonal or flanged design with integrated grooves for cotter pin insertion
|
|
Lock Washers
|
Double-lip raised edges or star-shaped teeth to prevent loosening under cyclic loads
|
3. Manufacturing Processes
00001. Adapter Sleeves:
· Heat Treatment: Induction hardening and tempering to stabilize dimensional accuracy (±0.02 mm)
· Grinding: CNC cylindrical grinding for surface roughness ≤Ra 0.4 μm
00002. Lock Nuts:
· Cold Forging: High-pressure forming to minimize material waste and enhance thread integrity
· Thread Rolling: ISO metric threads with tolerance class 6g for compatibility with adapter sleeves
00003. Lock Washers:
· Laser Cutting: Precision alignment of teeth geometry (≤±0.1 mm deviation)
· Stress Relief Annealing: Eliminate internal stresses after stamping
4. Performance Parameters
|
Parameter
|
Adapter Sleeves
|
Lock Nuts
|
Lock Washers
|
|
Max Load Capacity
|
150–300 kN (d1=500–1000 mm)37
|
50–200 kN axial load67
|
10–50 kN clamping force15
|
|
Temperature Range
|
-20°C to +150°C47
|
-30°C to +120°C6
|
-50°C to +200°C5
|
|
Torque Resistance
|
N/A
|
200–800 N·m (flange nuts)67
|
80–90% torque retention5
|
5. Industrial Applications
· Bearing Assembly:
· Adapter sleeves (e.g., H311, AHX3126) secure spherical roller bearings (e.g., 23126CCK/W33) in mining equipment
· Automotive Transmissions:
· Lock nuts (Tr530×6) and star-tooth washers stabilize wheel bearings under dynamic loads
· Heavy Machinery:
· Stainless steel lock washers prevent corrosion in conveyor systems exposed to moisture
