Jintai Export CY-19D Ball Transfer Unit to Singarpore

2019-09-23

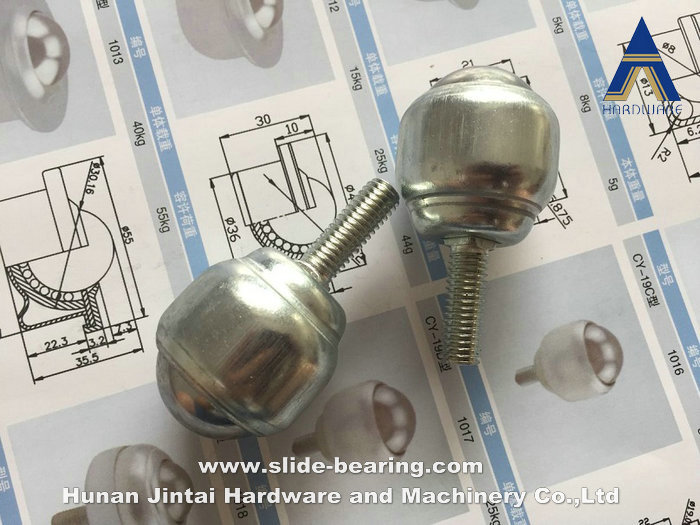

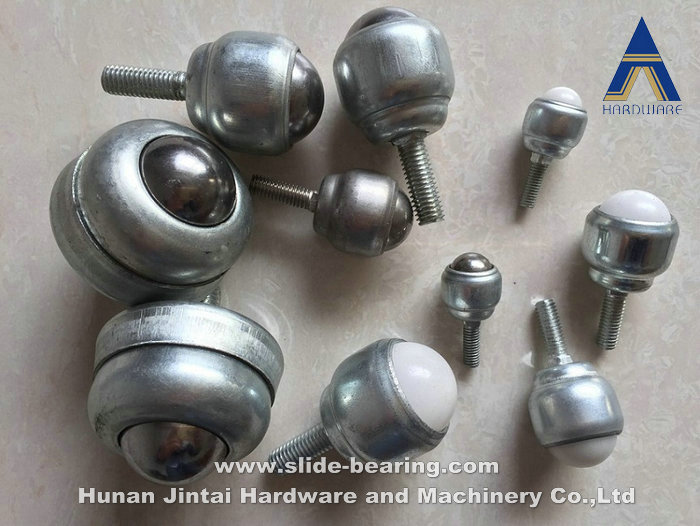

Products: CY-19D ball transfer unit, CY-19D steel ball transfer unit
Types: CY series
material: Steel
Size: 19.05 diameter
Quantity: 1000pcs
Country: Singarpore
Hunan Jintai export CY-19D ball transfer unit,CY series steel ball bearing to Singarpore.Jintai supply Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.

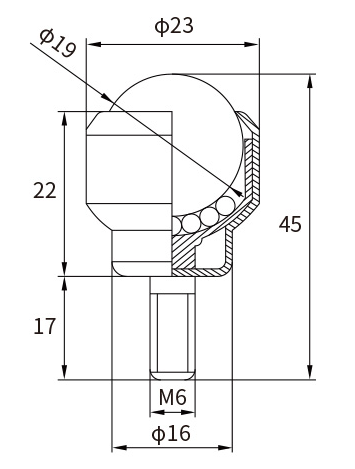

Model: CY-19D
Single load: 20KG
Body weight: 45G
Allowable load: 30KG






Due to the flexible rolling of the universal ball, the working plate, the material box and the like running on the ball can be flexibly moved, thereby greatly reducing the labor intensity of the worker, and the universal ball can be arbitrarily set according to different bearing requirements. Distribution density, you can also choose a universal ball with different carrying capacity. The universal ball has two materials: carbon steel zinc and stainless steel.

Universal ball is suitable for electronics, hardware, machinery, chemicals, food, forestry, mining, books, supermarkets, rubber and other industries. It is widely used in transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

The universal ball shell has three materials: carbon steel galvanized, 45# steel, stainless steel and reinforced nylon.

Universal ball: carbon steel ball, carbon steel galvanized ball, bearing steel ball, steel ball, plastic steel ball.

Recommended before the universal ball is used:

1. During the trial period, be sure to add lubricant.
2. The upward-facing universal ball is 2/3"* work, molecular (heavy) is the weight of the work, and the denominator is the best for the universal ball punch. 1/2" is the best. The downward-facing universal ball is 1/2".
3. Contact with the universal ball because of the friction coefficient and the relationship between the agitation resistance.
   (a) The surface of the iron plate is smooth and the hardness is HR62°.
   (b) The difference in the starting resistance value of various materials will affect the load.
   (c) In the case of wood, joints should be placed as far as possible to distribute the load. Furthermore, it is better to install iron plates for the bottom of the cargo.
4. The transmission of the weight of the object should be divided into three:
   (a) The balls should be accurately aligned and at least three (preferably four).
   (b) Surface hardness.
   (c) The case where the object is transmitted. Both are factors that should be considered.
5. In the uneven work, you can use the universal ball with spring to absorb different weights.
