How to choose the sliding bearing for your oil gear pump?

2018-08-07

Sliding Bearings are Bearings whereby the shaft slides in the Bearing.The friction and wear of Sliding Bearings is higher than in Roller Bearings. To reduce friction lubrication is often used.

So it is important to choose the sliding bearing to support your oil gear Pump.Friction can also be reduced by a proper choice of materials. SF-1T Bearing material is used this way. This is a special alloy with lubricating properties.

Structure:

1.PTFE with lead 0.01-0.03mm

2.Porous bronze 0.2-0.3mm

3.Steel backing 0.7-2.3mm

4.Tinplating 0.005mm or copper plating 0.008mm

They are composed of a Specially designed surface and is specifically applied for the high PV bushes of oil gear pump.It is to be used in hydrodynamic or boundary lubricating condition of medium or high pressure gear oil pumps such as P=16-25 Mpa,V=3.5-5m/s.It shows the benefits of low friction coefficient,wear resistant and anti-impact properties.At hydrodynamic lubricating,the PV limit reaches to 120N/mm2.m/s.It is the best choice for the bearings of various kinds of gear pumps as well as plunger pumps,vane pumps and so on.

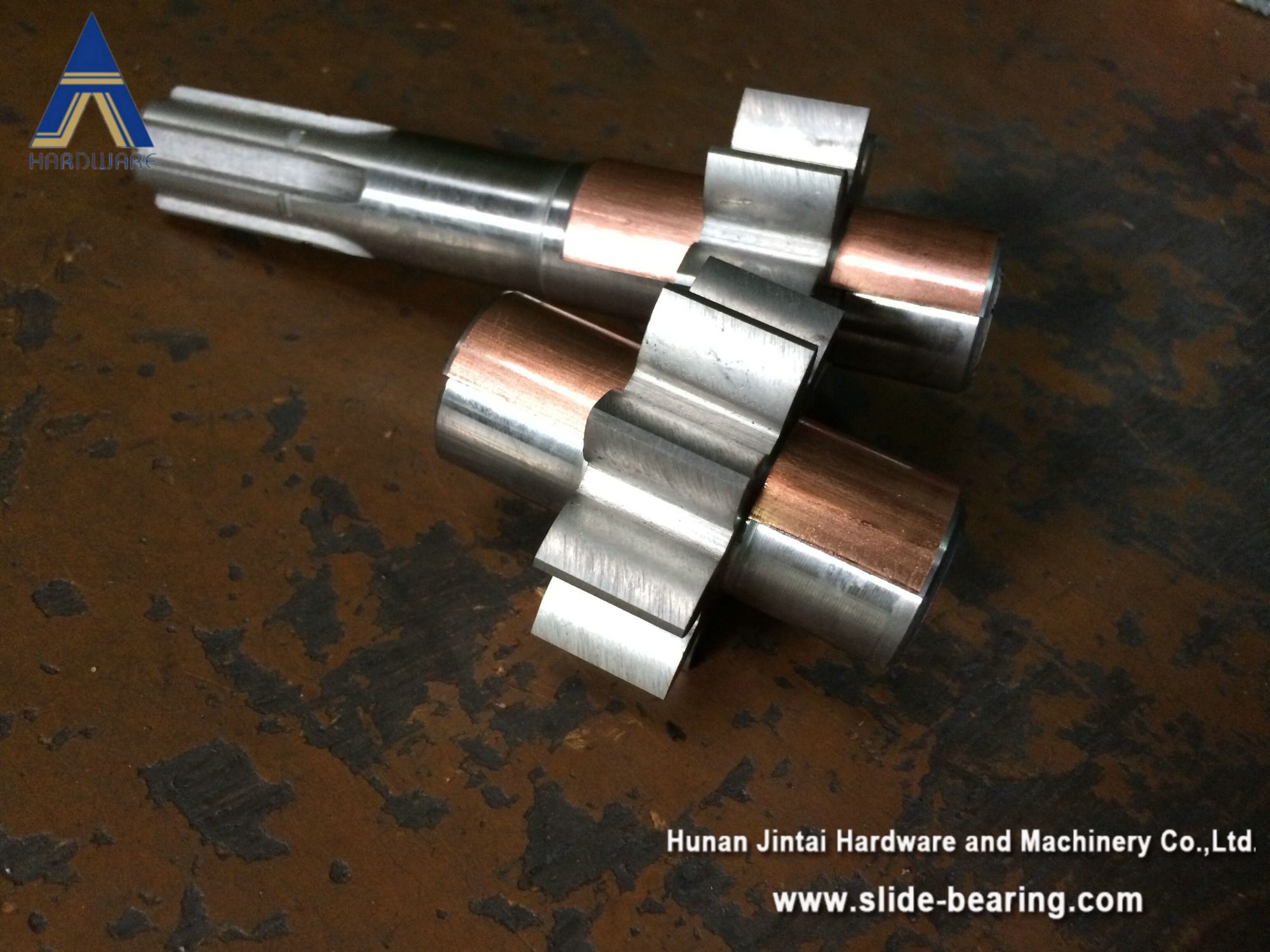

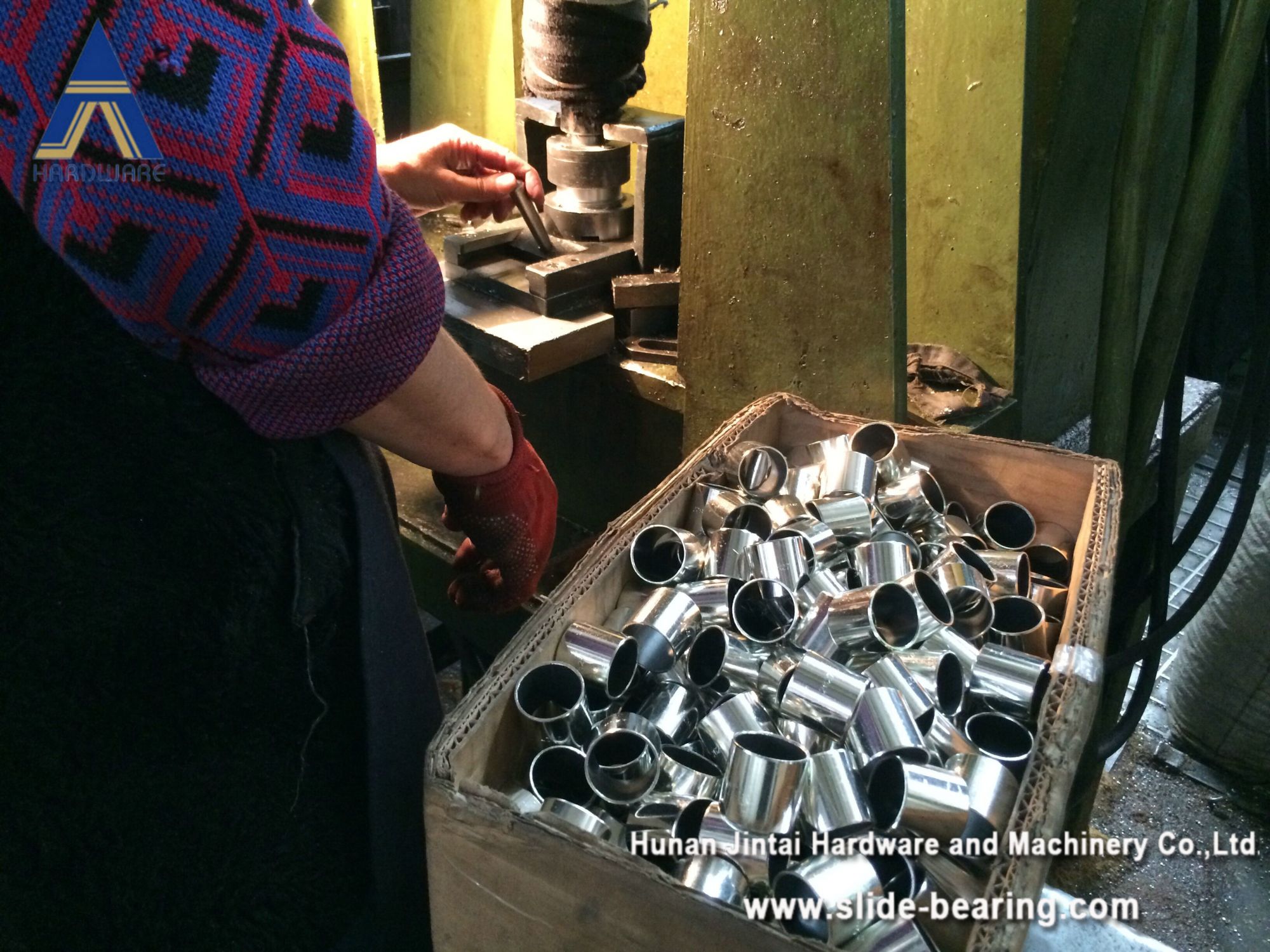

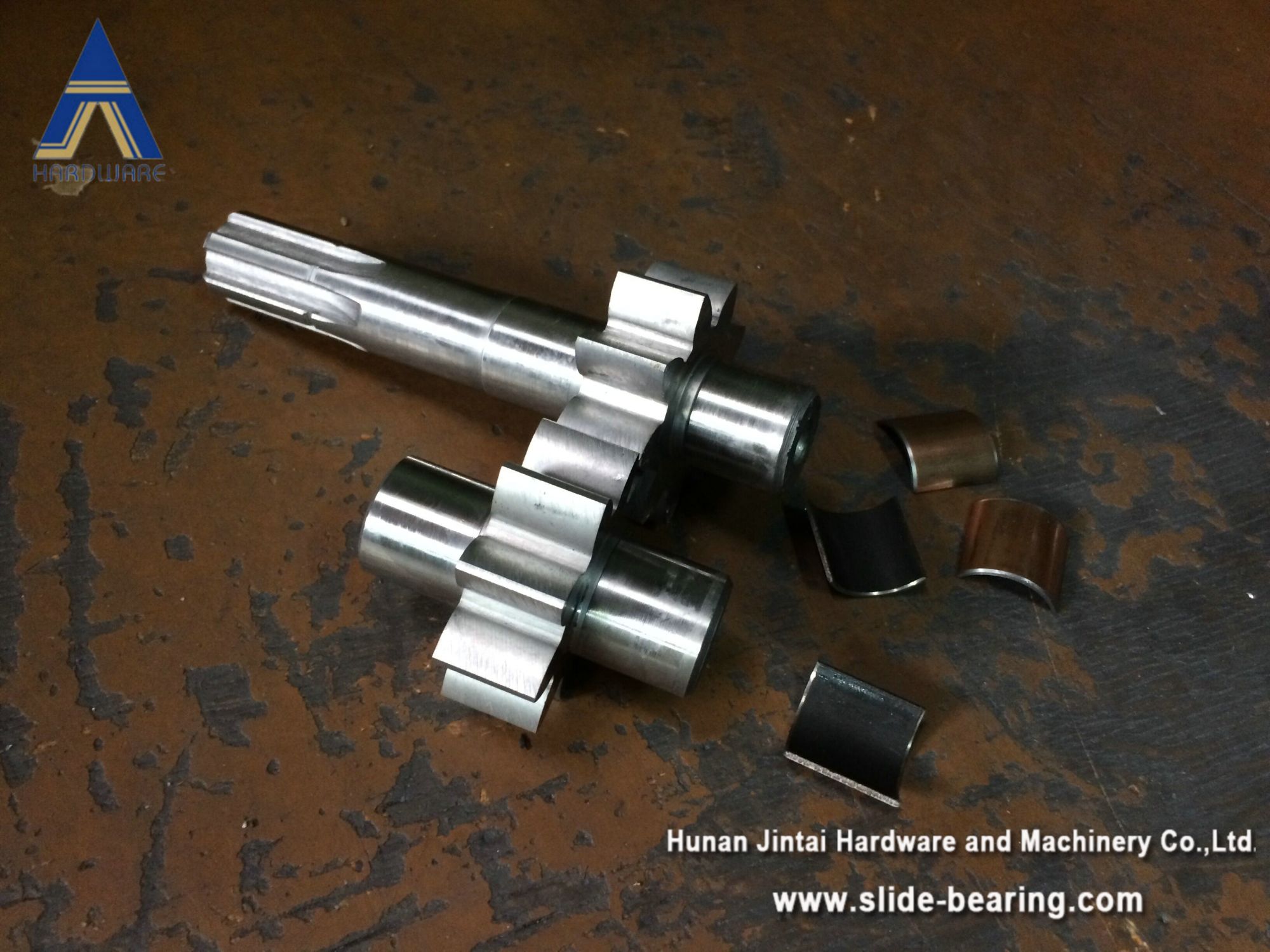

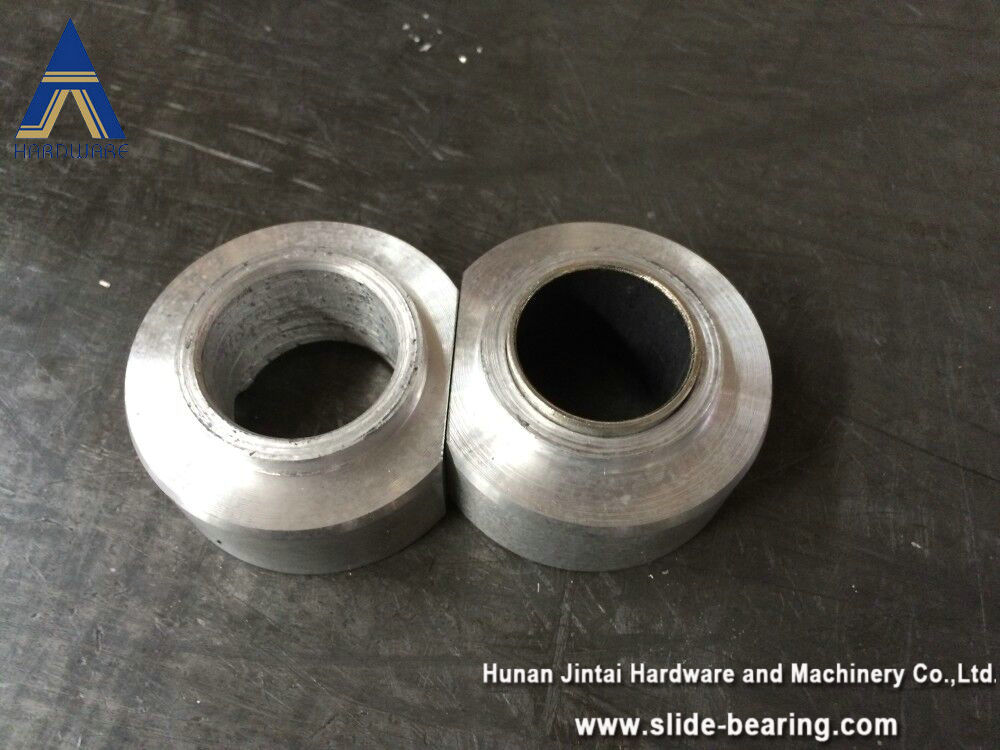

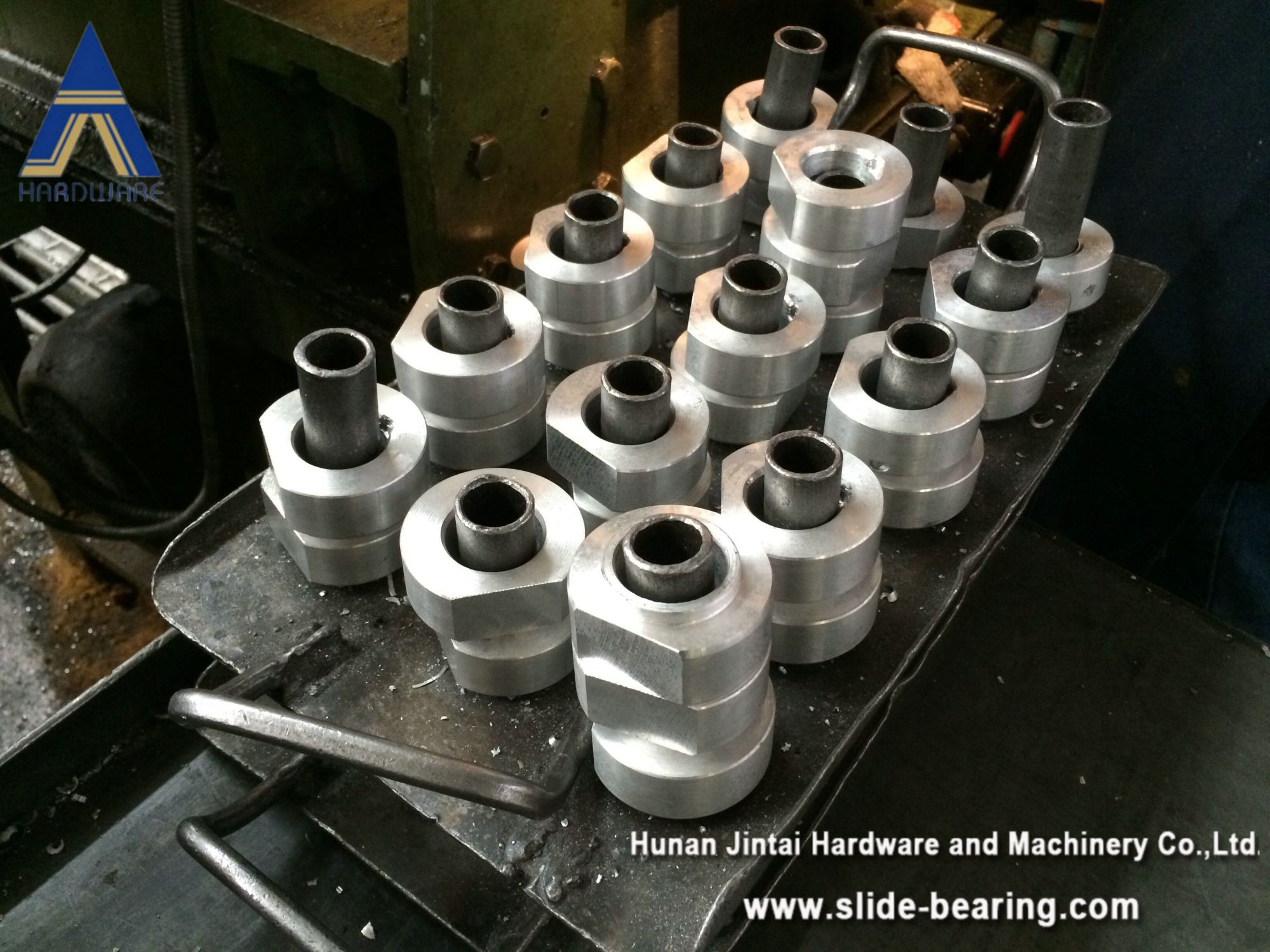

As below pictures from our customers,you can see the application of sliding bearing for the oil gear pump.The shafts are supported in multi-layer bearings that have excellent antifriction properties.

Hope this can help you to choose the sliding bearing for your oil gear pumps.To know more about the sliding bearing and any inquiry of our sliding bearings,pls visit our website:www.slide-bearing.com.













Hunan Jintai Hardware and Machinery Co.,Ltd. is a professional manufacturer on various kind of bearings over 15 years China factory.
We are making all kinds of slide bearings including
DU PTFE composit bushing, DX POM composite bushing,bimetal bushing,wrapped bronze bushing, cast sliding bushings and wear plate bearing pad, sintered bronze bushing and sintering parts, ball transfer bearings, etc.
The shapes of bearings can be in sleeve, flanged, spherical, plate, washer, pad, ring, square etc.
Base materials in carbon steel, harden steel, iron, stainless steel, bronze, brass, copper, bronze-steel alloy.Lubricant materials in PTFE, teflon, POM, nylon, plastic, oil, graphite, grease, MoS2, etc.
