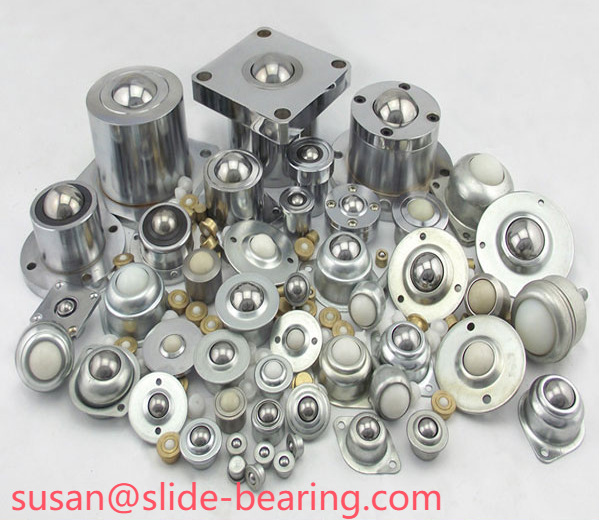

Ball Transfer Unit (BTU)
2025-11-26
1. Definition & Structural Design
Ball transfer units (BTUs) are omnidirectional rolling devices used in material handling systems to enable smooth multidirectional movement of loads. Key components include:
· Conveyor Ball: Solid steel or alloy ball (e.g., GCr15 bearing steel) for load-bearing and rotation.
· Support Bushings: Rotatably mounted bronze/steel bushings to minimize sliding friction.
· Housing: Forged alloy steel (e.g., 4140) with laser-engraved oil grooves or PTFE coatings for corrosion resistance.
· Sealing System: Floating annular seals to prevent contamination ingress in harsh environments.
2. Material Composition
|
Component
|
Material
|
Characteristics
|
|
Conveyor Ball
|
GCr15/52100 steel (HRC 60–65)
|
High hardness, wear resistance
|
|
Housing
|
4140 alloy steel (QT-treated)
|
Fatigue resistance, static load ≤120 kN
|
|
Bushings
|
Bronze (CuSn8) or 1045 carbon steel
|
Low friction coefficient (0.03–0.08)
|
3. Manufacturing Process
00001. Precision Machining: CNC grinding of conveyor balls to achieve surface roughness ≤Ra 0.2 μm
00002. Heat Treatment: Quenching and tempering for housing hardness up to 45–50 HRC
00003. Surface Engineering:
· Zinc plating or PTFE coating for corrosion resistance
· Laser-engraved helical oil grooves to optimize lubricant distribution
00004. Assembly: Press-fit bushings and floating seals to ensure contamination resistance
4. Performance Parameters
|
Parameter
|
Value
|
|
Static Load Capacity
|
50–120 kN (varies with ball size)
|
|
Rotation Resistance
|
≤0.05 N·m torque at 1000 rpm
|
|
Temperature Range
|
-40°C to +150°C
|
|
Wear Rate
|
≤0.02 mm/year under 50 kN load
|
5. Industrial Applications
· Conveyor Systems:
· Heavy-duty freight handling in warehouses (e.g., automotive parts, pallets)
· Modular double-skinned deck panels for assembly lines
· Automotive Manufacturing:
· EV battery pack assembly lines requiring multidirectional flexibility
· Aerospace:
· Precision positioning of composite materials during fabrication
